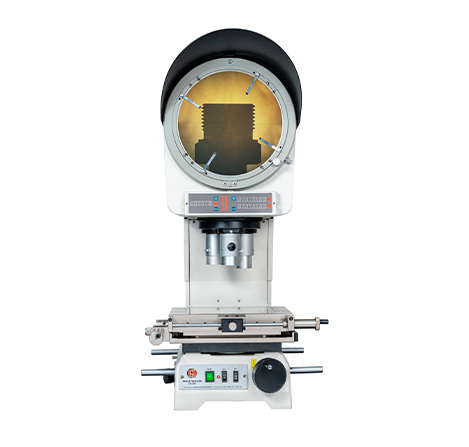

Coaxial Profile Projectors
Sipcon coaxial profile projectors are most advanced form of profile projectors available in the market today. The projectors are shop floor environment friendly, providing an optimal balance between performance, cost, accuracy, and user-friendliness.
Salient Features
- Erect and unreversed image
- Up and down movement by movement of projection screen
- Coaxial (through the lens lighting) Lens system
- Magnification options – 5X,10X, 20X, 50X and 100X
- Highly suitable for deep cavity inspection
This Product Is Ideal For
Automobile Industry
Plastic Industry
Aerospace Industry
Rubber Industry
Electrical Industry
Fasteners & Gears Industry
Sipcon Profile Projectors comes with world finest projection lenses, optical components and outstanding Illumination that ensures a fully correct image, superb image contrast and resolution right to the edge of the screen.
The international standard calibration system assures highest level of accuracy with International and NPL traceability. With a network of fully trained marketing agents SIPCON provides full after sale service and support second to none.
| Sr. No. | Specifications | SPN-300 | |
|---|---|---|---|
| 1 | SCREEN | Size | 300mm diameter |
| Construction | Opaque fine grained ground glass screen with 90°,60°,30° cross line | ||
| Location | Above the workstage,Ftted with graduated ring (0-360°) L.C. 1 min, through Digital Counter | ||
| Image Type | Erect , not inverted | ||
| 2 | LIGHT AXIS | Vertical | |
| 3 | OPTICS | Std | 10X,20X - Parafocal optical system |
| Opt | 50X, 100X | ||
| Mount | 3 lens turret mount | ||
| 4 | WORKSTAGE SIZE | Std | 410mm x 310mm |
| Opt | X Axis upto 550mm, Y axis upto 350mm | ||
| 5 | MEASURING RANGE | Std | 100mm x 100mm |
| Opt | X axis upto 400mm, Y Axis upto 200mm | ||
| 6 | FOCUSING | Travel | 100mm |
| Method | By raising & lowering the optical head | ||
| Movement | Manual or Matorized | ||
| 7 | LINEAR MEASUREMENT | Built in Glass Scale / Linear Encoder | |
| 8 | Maginification ACCURACY | Contour | ± 0.05% |
| Surface | ± 0.05% | ||
| 9 | ILLUMINATION | Contour | 24V/150W halogen lamp with illumination control with fan cooled system |
| Surface | Twin 24V 150W halogen lamp - On axis vertical to provide coaxial light system with fan cooled system | ||
| 10 | Cooling System | Fan | |
| 11 | MEASURING SYSTEM | D.R.O. / Software | |
| 12 | RESOLUTION | 0.001/0.005/0.0005 mm | |
| 13 | MOTORIZED MOVEMENT | Optional (X, Y and focusing with speed control) | |
| 14 | STAND | Unique rigid vibration free handling of component with adjusting feet | |
| 15 | Optional Hardware | Profile Charts, Rotary table, V-Block, Center Holding Device, Opto-edge Sensor |
Benefits Of This Products
Deep Cavity Inspection
Due to through the lens lighting the deep blind holes are also illuminated fully.
True Colors On Screen
Coaxial illumination system projects true colors & contrast on the screen.
Erect Image
unlike traditional projectors the image in these projectors is true i.e left is projected on left and top on top side of mage makes it easier for operator to do the measurements.
No Focusing Movement
The up down movement is through movement of the projection screen so your part is stationary when you are focusing.
More Load Capacity
Due to stationary work table while focussing the load capacity is 20 kgs which is approximately double than the conventional projectors.
Thread Less Worktable
No threads for movements result in no wear and tear and because of this no backlash in movement.
