Spring Genie
Sipcon Spring Genie is a perfect combination of precise lenses, excellent lighting to give sharp, clear image with outstanding accuracy. Spring measurement can be very challenging because of the size, softness, deformations, handling difficulty, swinging issues. Spring genie is ideal for spring measurements in one click to calculate more than 35 Spring parameters.
Salient Features
- 35 Parameters in one click
- Measure a spring with 0.5mm diameter to 140 mm diameter
- No operator dependence
- Measurement in 3 seconds
- Zero maintenance – No moving part
This Product Is Ideal For
Compression Springs
Tension Springs
Torsion Springs
Flat Spiral Springs
Barrel, Hourglass
Constant or Variable Pitch

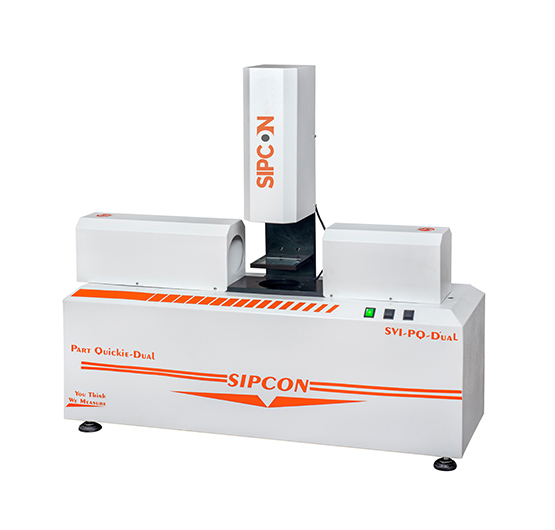

Sipcon Spring genie is absolutely user friendly system for fast and accurate inspection of any type of spring. Available in Horizontal, Vertical or dual configuration to measure all the parameters in one setup. Field of view options start from 16mm and go up to 150mm so choose according to your requirement.
| Model | SVI-SG-64 | SVI-SG-80 | ||||
|---|---|---|---|---|---|---|
| FOV Length X Width | 64x48mm | 80x60mm | ||||
| Camera | 1 | |||||
| Accuracy | ±15μm | |||||
| Repeatability | ±10μm | |||||
| Least Count | 0.1μm | |||||
| Illumination-Surface (optional) | Ring LED Light | |||||
| Illumination-Countour | Telecentric LED Light | |||||
| Focusing Range(Optional) | Optional(30mm) | |||||
| Power Supply | 110/220V @ 50Hz ±5% | |||||
| Machine Weight | 40Kgs. | 40Kgs. | ||||
| Interface | USB/Ethernet | |||||
| Optional Hardware | Laptop/PC with WIN10 operating system | |||||
| Base Platform & Column | Metal | |||||
| Auto Alignment | 360° Compensation | |||||
| Touch Screen Monitor | Optional | |||||
| Table | Optional | |||||
| Software Features | ||||||
| Tools | Point / Line / Circle / Arc / Distance / Angle / Extreme High Point | |||||
| Advance Features | AutoTools / Auto Edge Detection / DXF Overlay / Result on Images | |||||
| Multiple Reference Dimensions | Yes | |||||
| Coordinate System Configuration | Yes | |||||
| Deviation Analysis By DXF overlay | Yes | |||||
| Result on Images | Yes | |||||
| Report Format | Customizable | |||||
| Foot Switch | Optional | |||||
Benefits Of This Products
High Accuracy
Measure spring within 3 micron accuracy.
Superb Image Clarity
Negligible distortion lenses give bright and sharp images.
Easy Operation
Just 2 clicks and you have the report of measurement.
High Throughput
Measure multiple seals in one field of view.
User Friendly Interface
No training required to operate the machine.
