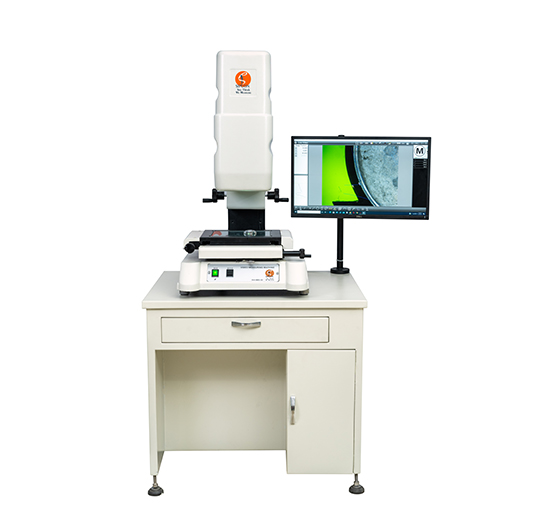

FOV Based Video Measuring Machine
FOV based Video Measuring Machine is actually a video measuring machine with a large field of view that allows measuring parts up to 80 mm in one click. So you get both, the speed one click measurement machine for up to 80mm part area and you also have a big worktable to move and measure big parts up to 300 or 400mm.
Salient Features
- Field of view up to 60/80mm
- Measuring range from 100x100x100mm to 500x400x300mm
- Full 2D software with least count – 1/0.5/0.1 micron
- Fully integration with CAD for reverse engineering application
This Product Is Ideal For
Automobile
Cutting Tools
Aerospace
Rubber
Electrical
Fasteners & Gears
Sipcon Video Measuring machines comes with high-resolution telecentric lenses and a 12/16 Mp camera for bright and sharp images. The user-friendly 2D measurement software ensures the results are user-independent. Multiple report options to choose from make reporting very flexible and easy. Full GD&T measurement options enhance the capability of the system even further
After first piece of inspection, measurement functions and stage movement are driven by the closed loop positioning system, and take place automatically, without operator’s intervention or subjectivity. Affords internal process control, lets you generate Histograms, X-bar, Range and sigma charts, and other pertinent capability and process control data.
| Model No. | SVI-CH-DR | SVI-CH-QC | SVI-CH-SW |
|---|---|---|---|
| Measuring System | GEO D.R.O. | Heidenhain ND1202 D.R.O. | SIPMEAS Software |
| Measuring Range (Standard) | 100mm X 100mm | ||
| (Optional) | X-axis upto 500mm, Y-axis upto 400mm | ||
| Focusing Range | 100mm (without encoder) | ||
| Resolution | 0.005/ 0.001/ 0.0005mm | ||
| Linear Accuracy | (3+L/200) micron | ||
| Repeatability | ±(0.002mm) | ||
| Vision | 1/3" High Resolution CCD Camera | ||
| Magnification | Optical Magnification 0.7X - 4.5X | ||
| Measurement Method | With the help of Cross-Hair on Screen | ||
| Optional Hardware | PC +19' Monitor | ||
| Illumination Surface | Fibre Optic/LED | ||
| Illumination Contour | Halogen Lamp/LED | ||
| Operation | Manual with Quick Release Knob | ||
| Base Platform & Column | Metal Base | ||
| Platform Load Capacity | 10Kg | ||
| Power Supply | 220-240 V ± 5%, 50/60 Hz | ||
| Motion Control through Joystick | Optional | ||
| Observation Head | Optional(Binocular / Trinocular) | ||
| Focusing Slide | Optional | ||
Benefits Of This Products
GD&T Compliant
All GD&T tolerances like parallelism, perpendicularity, circularity and true position etc. can be measured in just one click.
One Click Measurement
80 mm part in oneclick in 5sesonds - Just keep on moving the work table and measure the complete part in just few clicks.
Measure Multiple Parts
Keep multiple parts on worktable and just bring them in field of view to measure the same in one click.
Reporting
Built-in 10 types of report format to choose from and also option to create your template.
Accurate Worktables
Worktable up to 500x400 mm with a load capacity of up to 25 kgs.
Reverse Engineering
Compatible with all CAD modeling software in the market.
