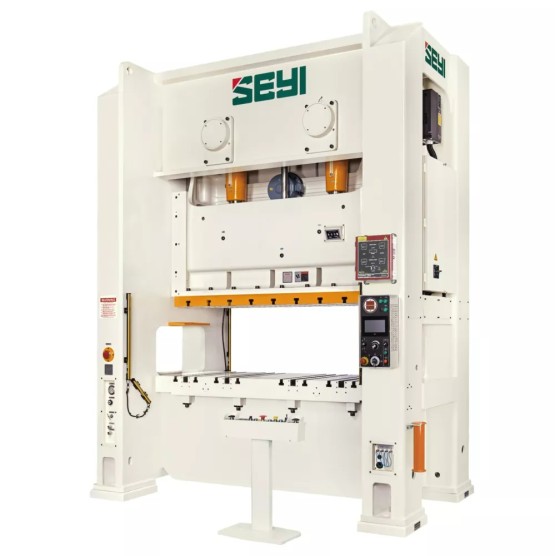

Solid Frame Crank Press (SNS Series)
This is generally applicable for blanking, punching, bending and forming process on small single work of thin steel plate and progressive die parts, which can connect with single press, progressive die, mechanical Robot or added with transfer system.
Description
- Unitized straight side frame, “Quick to Ship” , and no angular deflection of C frame press
- Good for precision or progressive dies, and longer die life
- Compliance with US-Europe-China safety guideline
- Easy to linked with kinds of ancillary automation equipments for mass production
Model : SNS1-80~300 / SNS2-160~500
|
Model |
SNS1-80 |
SNS1-110 |
SNS1-160 |
||||
|
Type |
S |
H |
S |
H |
S |
H |
|
|
Capacity |
kN |
800 |
1100 |
1600 |
|||
|
Stroke Length |
mm |
150 |
100 |
180 |
110 |
200 |
130 |
|
Strokes per Minute |
SPM |
40~75 |
55~125 |
35~65 |
50~110 |
30~55 |
40~95 |
|
Tonnage Rating Point |
mm |
5 |
5 |
6 |
|||
|
Die Height |
mm |
330 |
300 |
350 |
320 |
400 |
360 |
|
Slide Adjustment |
mm |
80 |
90 |
100 |
|||
|
Slide Area(LRxFB) |
mm |
700x460 |
800x520 |
900x580 |
|||
|
Diameter of Shank Hole |
mm |
ø50.8 |
ø50.8 |
ø65 |
|||
|
Bolster Area(LRxFB) |
mm |
900x680 |
900x460 |
1000x680 |
1000x520 |
1150x760 |
1150x600 |
|
Bolster Thickness |
mm |
140 |
155 |
165 |
|||
|
Bolster Height(w/o Mounts) |
mm |
900 |
900 |
940 |
900 |
||
|
Main Motor
|
kW x P |
7.5x4 |
11x4 |
15x4 |
|||
|
Slide Adjustment Motor |
kW x P |
0.4x4 |
0.4x4 |
0.7x4 |
|||
|
Window Opening(FBxUD) |
mm |
440x280 |
370x250 |
500x300 |
420x270 |
560x350 |
470x310 |
|
Foot Print |
mm |
1430x1470 |
1430x1420 |
1560x1600 |
1560x1550 |
1720x1780 |
1720x1730 |
|
Floor Space Required |
mm |
1630x1740 |
1765x1875 |
1905x2055 |
|||
|
Press Height(w/o Mounts) |
mm |
2765 |
3000 |
3320 |
3280 |
||
|
Max. Upper Die Weight |
kg |
300 |
400 |
400 |
|||
|
Required Air Pressure |
MPa |
0.5 |
0.5 |
0.5 |
|||
|
Die Cushion (Option) |
|||||||
|
Capacity |
kN |
60 |
- |
60 |
- |
80 |
- |
|
Stroke Length |
mm |
95 |
- |
95 |
- |
110 |
- |
|
Cushion Pad Area (LR × FB) |
mm |
480x340 |
- |
480x340 |
- |
560x370 |
- |
