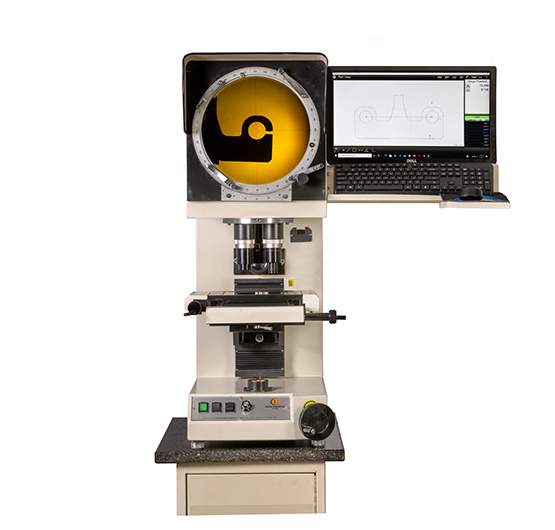

Vertical Profile Projector
Sipcon Profile Projectors are designed ergonomically to enable longer working hours without getting visual or physical fatigue. The projectors are shop floor environment friendly, providing an optimal balance between performance, cost, accuracy, and user-friendliness.
Salient Features
- Magnification options – 5X, 10X, 20X, 50X and 100X
- Perfect for measurement of corner radius and chamfer angle
- Zero maintenance – Thread less Workstage
- Measuring range from 50 x 50mm to 400 x 300mm
- Measurement Options- Micrometer, DRO or Software
This Product Is Ideal For
Automobile
Cutting Tools
Aerospace
Rubber
Electrical
Fasteners & Gears
Sipcon profile projectors with world finest projection lenses, optical components and outstanding Illumination ensures a fully correct image, superb image contrast and resolution right to the edge of the screen.
The international standard calibration system assures highest level of accuracy with International and NPL traceability. With a network of fully trained marketing agents SIPCON provides full after sale service and support second to none.
| S.no. | Specifications | SP-250 | SP-300 | SP-400 | |
| 1 | SCREEN | Opaque glass screen with 90o crossline Fitted with graduated rotary ring(0-360o) operated by knob, L.C.1min. | |||
| 1.1 | SCREEN SIZE | 250mm | 300mm | 400mm | |
| 2 | LIGHT AXIS | Vertical | Vertical | Vertical | |
| 3 | OPTICS (Std.) | 10X | 10X | 10X | |
| 3.1 | (Opt.) | 20X, 50X, 100X | 20X, 50X, 100X | 20X, 50X, 100X | |
| 3.2 | (Mount) | Screw Mount | 3 Lens Turret Mount/Screw Mount | 3 Lens Turret Mount/Screw Mount | |
| 4 | WORKSTAGESIZE(Std.) | 160mm X 160mm | 160mm X 160mm/260mm X 260mm | 260mm x 260mm | |
| 5 | MEASURING RANGE(Std.) | 50mm X 50mm | 50mm X 50mm/100mm X 100mm | 100mm X 100mm | |
| 5.1 | (Opt.) | N.A. | X-Axis up to 400mm, Y-Axis upto 200mm | ||
| 6 | FOCUSING | 90mm | 90mm | 90mm | |
| 7 | LINEAR MEASUREMENT | Micrometers | Micrometers/Built-in Glass Scale | Built-in Glass Scale | |
| 8 | RESOLUTION | 1μm | 5/1/0.5μm | 5/1/0.5μm | |
| 9 | MEASURING SYSTEM | Micrometers | Micrometers/D.R.O./PC based Software | ||
| 10 | PROJECTIONACCURACY | ±0.05%(Contour/Surface) | |||
| 11 | ILLUMINATION(Contour) | 24V/150W halogen lamp, illumination control with condenser unit provide light as per lens | |||
| 11.1 | (Surface) | Twin24V/150WHalogen lamp provides shadowless lighton optical axis | |||
| 12 | STAND | Unique rigid pedestal system facilitates vibration free handling of component | |||
| 13 | COOLING SYSTEM | Fan | |||
| 14 | POWER SUPPLY | 110/220VAC,50/60Hz | |||
| 15 | MOTORIZED MOVEMENT | N.A. | Optional(X, Y and focusing with speed control) | ||
| 16 | OPTIONALHARDWARE | Profile Charts, Rotary Table, V-block,Centre Holding Device Opto Edge Sensor, Rotary Encoder | |||
Benefits Of This Products
Magnifications
Magnifications To Cover Your Big And Small Parts
Measurement Options
All Measurement Options From Basic To Complex Needs
Outstanding Illumination
Outstanding Illumination
Wide Measuring Range
Wide Measuring Range To Cover Your Biggest Parts
Rapid And Fine Movement
Rapid And Fine Movement For Fast Measurement And Precise Positioning, Respectively
Least Count
Least Count To Suit Most Stringent Applications
Reverse Engineering
Don’t Outsource Your Reverse Engineering Work From Now
Small Corner Radius And Chamfer Measurement
A Perfect Solution For Small Corner Radius And Chamfer Measurement
Gd&T
Complete Gd&T Solutions Inbuilt
Charts For Fast Comparison
Wide Range Of Charts For Fast Comparison
Accuracy & Repeatability
Best In Industry In Terms Of Accuracy & Repeatability
Operator To Operator Variation
Free Yourself From Operator To Operator Variation
