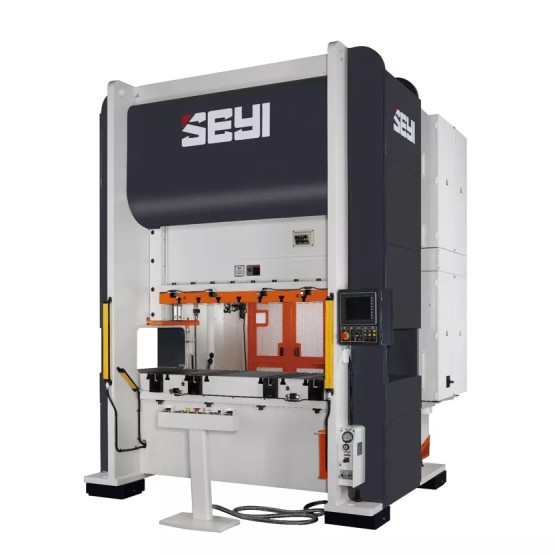

Solid Frame Crank Servo Press (SD Series)
Suitable for application in auto parts, consumable electronics and household appliances. These can require perfect forming. By combining progressive die with pendulum curve, the productivity can possibly be doubled, which saves more than 50% of energy. Furthermore, automated transfer production line can also be added to upgrade the productivity.
Description
- Intersected parallel framework, 8-point Guided Slide
- Exclusive servo motor for press machine
- Centralized circulation of oil lubrication
- Energy conservation Space saving Improvement in production volume
- 8 default modes
- Best B.D.C. Accuracy
- User-friendly operation interface and monitoring software
- Hand wheel mode for convenient die calibration
Model : SD1-80~300 / SD2-160~500
|
Model |
SD1-88 |
SD1-176 |
SD1-220 |
SD1-330 |
||
|
Capacity |
U.S.ton |
88 |
176 |
220 |
330 |
|
|
Stroke Length |
in |
7.09 |
8.66 |
9.84 |
11.81 |
|
|
Strokes per Minute |
SPM |
~ 80 |
~ 60 |
~ 50 |
~ 40 |
|
|
Tonnage Rating Point |
in |
0.20 |
0.24 |
0.24 |
0.24 |
|
|
Die Height |
in |
12.99 |
15.75 |
17.72 |
21.65 |
|
|
Slide Adjustment |
in |
3.15 |
3.94 |
4.33 |
4.72 |
|
|
Slide Area(LRxFB) |
in |
27.56x18.11 |
35.43x22.83 |
39.37x26.38 |
45.28x31.50 |
|
|
Bolster Area(LRxFB) |
in |
37.40x26.77 |
45.28x29.92 |
51.18x34.25 |
57.09x41.34 |
|
|
Bolster Thickness |
in |
5.51 |
6.50 |
7.09 |
7.87 |
|
|
Bolster Height(w/ Mounts) |
in |
38.94 |
41.50 |
44.65 |
45.43 |
|
|
Window Opening(FBxUD) |
in |
26.77x11.02 |
29.92x13.78 |
34.25x15.75 |
41.34x17.72 |
|
|
Floor Space Required |
in |
77.20x80.71 |
85.08x100.67 |
87.56x108.70 |
95.04x124.29 |
|
|
Press Height(w/ Mounts) |
in |
120.08 |
142.13 |
156.89 |
175.59 |
|
|
Max. Upper Die Weight |
LBS |
661 |
1102 |
1763 |
2866 |
|
|
Required Air Pressure |
PSI |
71 |
71 |
71 |
71 |
|
|
Die Cushion |
Capacity |
U.S.ton |
6.6 |
8.8 |
11 |
15.4 |
|
Stroke Length |
in |
3.74 |
4.33 |
5.12 |
5.51 |
|
|
Cushion Pad Area(LRxFB) |
in |
18.90x13.39 |
22.05x14.57 |
27.56x17.72 |
27.56x17.72 |
|
