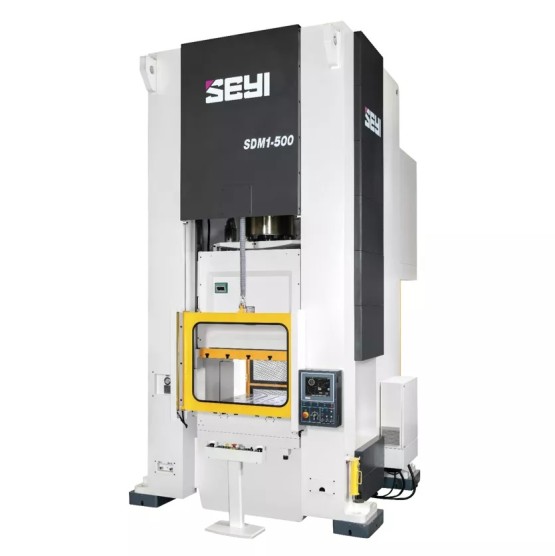

Heavy Stamping Servo Press (SDM1 Series)
Equipped with new-generation SEYI servo control system, this high-efficiency heavy stamping servo press is designed for forming thick metal plates. The slide movement can be flexibly adjusted to fulfill different applications such as bending, drawing and piercing. Suitable to manufacture high-precision and high-quality parts for automobiles, motorcycles, ICT products, aerospace, and medical equipment.
Description
- High-Accuracy Forming Press
- 8-sided guide design to ensure the high stability of the slide
- High stiffness of structure and low deformation to ensure the precision
- To fulfill Multiple Stamping Processes
- Applications for bending, drawing, piercing and so on
- Heavy stamping for thick metal plates over 6mm
- Intuitive User Interface for Easy Setup
- Easy to use for first-line operators
- Easy to input the speed parameters at each position of the slide
Model : SDM1-500~800
|
Model |
|
SDM1-500 |
SDM1-650 |
SDM1-800 |
|
Capacity |
kN |
5000 |
6500 |
8000 |
|
Stroke Length |
mm |
300 |
300 |
300 |
|
Strokes per Minute |
SPM |
1~40 |
1~35 |
1~30 |
|
Tonnage Rating Point |
mm |
13 |
13 |
13 |
|
Die Height |
mm |
650 |
700 |
750 |
|
Slide Adjustment |
mm |
150 |
150 |
150 |
|
Slide Area(LRxFB) |
mm |
1200 x 1100 |
1300 x 1200 |
1500 x 1300 |
|
Bolster Area(LRxFB) |
mm |
1200 x 1200 |
1300 x 1300 |
1500 x 1500 |
|
Bolster Thickness |
mm |
250 |
250 |
250 |
|
Bolster Height(w/ Mounts) |
mm |
1060 |
1100 |
1200 |
|
Max. Upper Die Weight |
Ton |
1 |
1.5 |
2 |
|
Slide Adjustment Motor |
kW×P |
1.5 x 4 |
2 x 6 |
2 x 6 |
|
Window Opening(FBxUD) |
mm |
700 x 550 |
800 x 600 |
850 x 650 |
|
Press Height |
mm |
5300 |
5600 |
6500 |
|
Required Air Pressure |
MPa |
0.6 |
||
