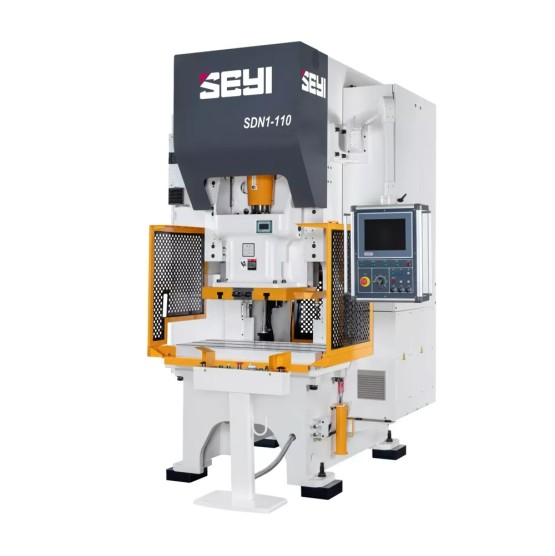

C Frame Direct-Drive Servo Press (SDN1 Series)
Equipped with a new-generation direct-drive servo motor, the powerful but compact SDN1 series is suitable for various stamping processes such as cutting, blanking, and drawings. Be able to fulfill different applications with a stand-alone press or tandem line. Additionally, the outstanding energy-saving design helps reduce the operation’s carbon footprint.
Description
- Direct-drive transmission
- Low-speed, high-torque servo motor designed for low tonnage servo presses
- Energy-saving design for low-carbon manufacturing
- Electronic Overload Protection
- T Stand with Hand Wheel, perfect for tooling setup
- Easy-to-use Swing Arm Mounted HMI
Model : SDN1-80~250
|
Model |
SDN1-80 |
SDN1-110 |
SDN1-160 |
SDN1-200 |
SDN1-250 |
||
|
Capacity |
kN |
800 |
1100 |
1600 |
2000 |
2500 |
|
|
Stroke Length |
mm |
160 |
180 |
200 |
250 |
300 |
|
|
Strokes per Minute |
SPM |
~ 80 |
~ 70 |
~ 60 |
~ 50 |
~ 40 |
|
|
Tonnage Rating Point |
mm |
5 |
5 |
5.5 |
6 |
6.5 |
|
|
Die Height |
mm |
320 |
350 |
400 |
450 |
540 |
|
|
Slide Adjustment |
mm |
80 |
90 |
100 |
110 |
120 |
|
|
Slide Area(LRxFB) |
mm |
560x460 |
650x520 |
720x580 |
880x650 |
1110x730 |
|
|
Bolster Area(LRxFB) |
mm |
1050x600 |
1150x680 |
1250x760 |
1470x840 |
1750x900 |
|
|
Bolster Thickness |
mm |
140 |
155 |
165 |
180 |
180 |
|
|
Bolster Height (w/o mounts) |
mm |
900 |
900 |
900 |
1000 |
1100 |
|
|
Frame-Inside Distance |
mm |
510 |
550 |
620 |
800 |
1115 |
|
|
Throat Depth |
mm |
310 |
350 |
390 |
430 |
470 |
|
|
Max. Upper Die Weight |
kg |
275 |
385 |
485 |
1000 |
1300 |
|
|
Required Air Pressure |
MPa |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
