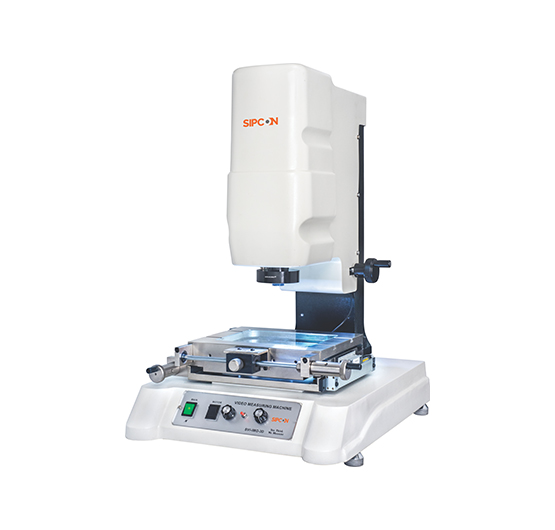

Manual Video Measuring System
Video Measuring Machine is also known as Vision Measuring Systems, is used for quick and accurate 3d measurements of small parts with Video edge detection technique. Edges detection on high-resolution video with a single click making the measurement process fast and operator-independent.
Salient Features
- Magnification range from 9X-500X
- Measuring range from 100x100x100mm to 500x400x300mm
- Full 3D software with least count – 1/0.5/0.1 micron
- Fully integration with CAD for reverse engineering application
- Autofocus
- Thread less worktable – Zero Backlash
This Product Is Ideal For
Automobile
Cutting Tools
Aerospace
Rubber
Electrical
Fasteners & Gears
Sipcon Video Measuring machines comes with high-resolution telecentric lenses and a 5 Mp camera for bright and sharp images. The user-friendly 3D measurement software ensures the results are user-independent. Multiple report options to choose from make reporting very flexible and easy. Full GD&T measurement options enhance the capability of the system even further
| Model No. | SVI-IMG-300 | SVI-IMG-3D | SVI-IMG-5300 |
|---|---|---|---|
| Software | QC-300 | MSU-3DPro | Ik 5000 |
| Measuring Range-Standard | 150mm X 100mm X 100mm | ||
| Measuring Range-Optional | X-axis upto 500mm, Y-axis upto 400mm, Z-axis upto 300mm | ||
| Resolution | 0.005/ 0.001/ 0.0005/ 0.0001mm | ||
| Linear Accuracy | (3+L/200) micron | ||
| Repeatability | ±(0.002mm) | ||
| Vision | 1/3" High Resolution CCD Camera | ||
| Magnification | Optical Magnification 0.7X - 4.5X & Magnification on Monitor 35X - 225X | ||
| Video Edge Detection | Standard | ||
| Optional Hardware | PC + 19" TFT Monitor | ||
| Illumination Surface | Fibre Optic/LED | ||
| Illumination Contour | Halogen Lamp/LED | ||
| Operation | Manual with Quick Release Knob | ||
| Base Platform & Column | Metal Base | ||
| Platform Load Capacity | 15Kg | ||
| Power Supply | 220-240 V ± 5%, 50/60 Hz | ||
| Motion Control through Joystick | Optional | ||
| Programmable Lite Control | Optional | ||
| Touch Probe | Optional | ||
| Non-Linear Error Correction | Optional | Standard | Standard |
| Autofocus | Optional | ||
Benefits Of This Products
GD&T Compliant
All GD&T tolerances like parallelism, perpendicularity, circularity and true position etc. can be measured in just one click.
Full 3D Software
Can be integrated with touch probe and can measure as a mini CMM.
Autofocus
Built-in autofocus option results in no focusing error and better accuracy in height measurement.
Reporting
Built-in 10 types of report format to choose from and also option to create your template.
Accurate Worktables
Highly accurate worktable up to 500x400 mm with a load capacity of up to 25 kgs.
Reverse Engineering
Compatible with all CAD modeling software in the market.
