Part Genie

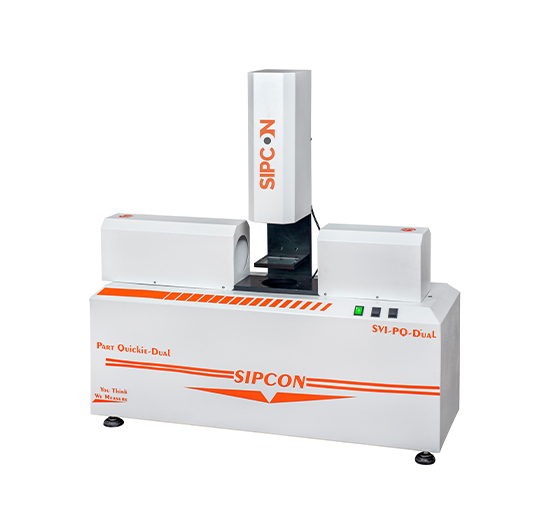

Sipcon introduces the fastest measurement system ever – Part Quickie. Now measure any kind of 2D geometry in parts with just one click. This ONE CLICK MEASUREMENT SYSTEM is cable of measuring points, lines, circles, angles, distances, pitch, positions, etc. Not only the above measurements but you can measure the various tolerance features like straightness, roundness, concentricity, parallelism, etc. The system comes in 2 versions horizontal and vertical to suit the requirement of the industry.
Salient Features
- 10,000 points per feature for better accuracy and repeatability
- Measurement time less than 3 seconds for 100 features
- No orientation or reference required- 360o compensation
- Complete batch report with color coded pass and Fail in Excel or PDF
This Product Is Ideal For
Aluminium
Aerospace
Automotive
Brass
CNC turned components
Electrical
Electronics
Fuel Injection system
Glass
Metals
Precision Engineering
Rivets
Part Genie- the fastest measurement system ever, This one click measurement solution for parts size and geometry measurements. This Automatic Optical Inspection or Optical profile inspection system is a great package of speed, accuracy, precision, operator independent results, and ease of use. The powerful software converts the image into real time dimensional data and measures the part to an accuracy of 3 microns.
| specification | SVI-TI-3D |
|---|---|
| Measuring Range | X-Axis: 200mm; Y-Axis: 200mm; Z-Axis 100mm |
| Resolution | 0.001 mm |
| Accuracy | (3+L/200)μm |
| Repeatability | 2 microns |
| Magnification | 14X-90X |
| Working Distance | 170 mm |
| Field of view | Max 18-Min 2.8mm |
| Max Tool Diameter (Std.) | 25 mm diameter with rotary fixture & 100 mm with V block. |
| Max Tool Diameter (Opt.) | 50mm with rotary fixture |
| Max tool Length | 200mm |
| Camera | High Resolution 3MP |
| Rotary plate range | 360° |
| Rotary Plate resolution | 6" |
| Accuracy of Granite | Din Grade 0 |
| Accuracy of the V block | Grade 1 |
| Max Load Capacity | 20 Kgs |
| Illumination | LED cold light |
| Illumination - Back | LED |
Benefits Of This Products
Measure Up To 240mm
Measure parts upto 240mm in one click.
No Operator Skill Required
Just click snapshot and then inspect.
Customizable Report
Create your template formats.
SPC
Built in SPC for accurate report.
Easy To Operate
Multiple parts in one click.
