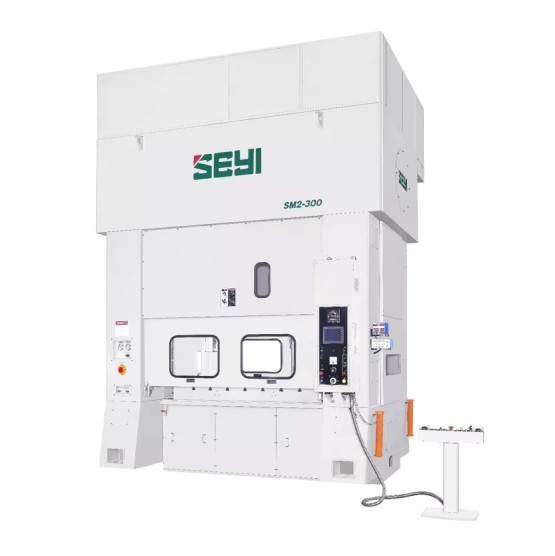

Progressive Stamping Link Press (SM2 Series)
This is generally applicable for blanking, punching, bending and forming process on small size but large quantity of parts produced from progressive die pressing, which can connect with progressive die or added with transfer system.
Description
- High precision & rigidity structural design
- Low forming speed
- Unique dynamic balance system
Model : SM2-200~600
|
Model |
SM2-200 |
SM2-300 |
SM2-400 |
SM2-600 |
||
|
Tonnage Capacity |
kN |
2000 |
3000 |
4000 |
6000 |
|
|
Stroke Length |
mm |
200 |
200 |
200 |
250 |
|
|
Stroke per Minute |
spm |
50~120 |
40~100 |
30~80 |
30~70 |
|
|
Tonnage Rating Point |
mm |
6.5 |
6.5 |
6.5 |
10 |
|
|
Die Height |
mm |
450 |
550 |
650 |
750 |
|
|
Slide Adjustment |
mm |
100 |
100 |
100 |
150 |
|
|
Slide Area(LRxFB) |
1 |
mm |
1500 x 900 |
1800 x 1000 |
2100 x 1100 |
2400 x 1250 |
|
2 |
1800 x 900 |
2100 x 1000 |
2400 x 1100 |
2700 x 1250 |
||
|
3 |
2100 x 900 |
2400 x 1000 |
2700 x 1100 |
3000 x 1250 |
||
|
Bolster Area(LRxFB) |
1 |
mm |
1500 x 1000 |
1800 x 1100 |
2100 x 1200 |
2400 x 1400 |
|
2 |
1800 x 1000 |
2100 x 1100 |
2400 x 1200 |
2700 x 1400 |
||
|
3 |
2100 x 1000 |
2400 x 1100 |
2700 x 1200 |
3000 x 1400 |
||
|
Bolster Thickness |
mm |
180 |
180 |
250 |
250 |
|
|
Bolster Height(w/ Mounts) |
mm |
1000 |
1150 |
1250 |
850 (w/ Foundation) |
|
|
Upper Die Weight |
Ton |
1 |
1.5 |
3 |
3 |
|
|
Main Motor |
kW×P |
30x4 |
37x4 |
45x4 |
90x4 |
|
|
Window Opening (FBxUD) |
mm |
700 x 250 |
800 x 250 |
900 x 250 |
1050 x 250 |
|
|
Press Height |
mm |
4410 |
5000 |
5500 |
6400 (from FL) |
|
|
Required Air Pressure |
MPa |
0.55 |
||||
