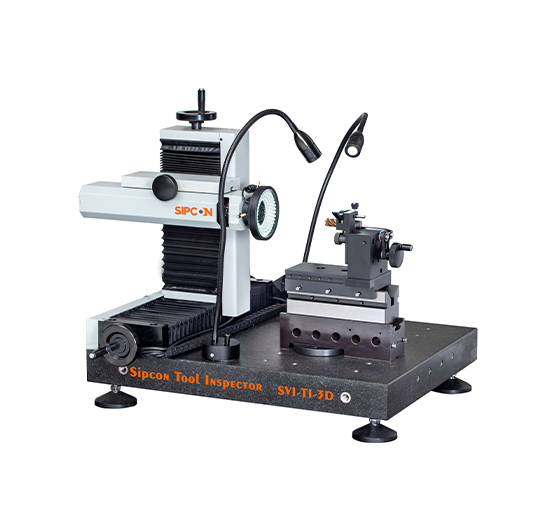

Cutting Tools Measurement System
Ideal for cutting tool manufacturers to measure approximately all the parameters which are required to ensure long life and good quality of the cutting tools. This is a very user friendly 5 axis tool measurement system which can measure all the parameters without any skilled manpower.
Salient Features
- Measurement range – Tools from diameter 1 mm to 100 mm
- Large magnification range to measure small tools
- Precise rotary attachment to measure side and front view in the same setup
- Tool Pro software to measure more than 100 tool geometry parameters
This Product Is Ideal For
End Mills
Drills
Taps
Ball Nose
Reamers
Special Tools
More than 100 measurement parameters.
Overlap your DXF files on the magnified image to quickly check whether the tool is within the tolerance or not. Supports more than 10 types of Tolerance settings including group Tolerancing and Result window will display all the results with tolerance values and will give an indication for PASS or Fail features.
Customised report generation with color coded pass and fail, options to add the company logo, batch number, operator name, date and time, etc. Image of measurement done is also part of the report format.
| Model | SVI-SG-64 | SVI-SG-80 | ||||
|---|---|---|---|---|---|---|
| FOV Length X Width | 64x48mm | 80x60mm | ||||
| Camera | 1 | |||||
| Accuracy | ±15μm | |||||
| Repeatability | ±10μm | |||||
| Least Count | 0.1μm | |||||
| Illumination-Surface (optional) | Ring LED Light | |||||
| Illumination-Countour | Telecentric LED Light | |||||
| Focusing Range(Optional) | Optional(30mm) | |||||
| Power Supply | 110/220V @ 50Hz ±5% | |||||
| Machine Weight | 40Kgs. | 40Kgs. | ||||
| Interface | USB/Ethernet | |||||
| Optional Hardware | Laptop/PC with WIN10 operating system | |||||
| Base Platform & Column | Metal | |||||
| Auto Alignment | 360° Compensation | |||||
| Touch Screen Monitor | Optional | |||||
| Table | Optional | |||||
| Software Features | ||||||
| Tools | Point / Line / Circle / Arc / Distance / Angle / Extreme High Point | |||||
| Advance Features | AutoTools / Auto Edge Detection / DXF Overlay / Result on Images | |||||
| Multiple Reference Dimensions | Yes | |||||
| Coordinate System Configuration | Yes | |||||
| Deviation Analysis By DXF overlay | Yes | |||||
| Result on Images | Yes | |||||
| Report Format | Customizable | |||||
| Foot Switch | Optional | |||||
Benefits Of This Products
Easy Reporting
Customized report can be created.
360o Fixture
with least count of 1 second for accurate positioning while measuring the side and front view.
Thread Less Movement
Results in no backlash so precise positioning.
High Resolution Imaging
3Mp camera gives ultra-clear edges for better accuracy.
No Operator Skill
Video Edge Detection ensures points are picked automatically without any operator intervention.
Optional Accessories
Comprehensive range of optional accessories to cover your complete tool range.
