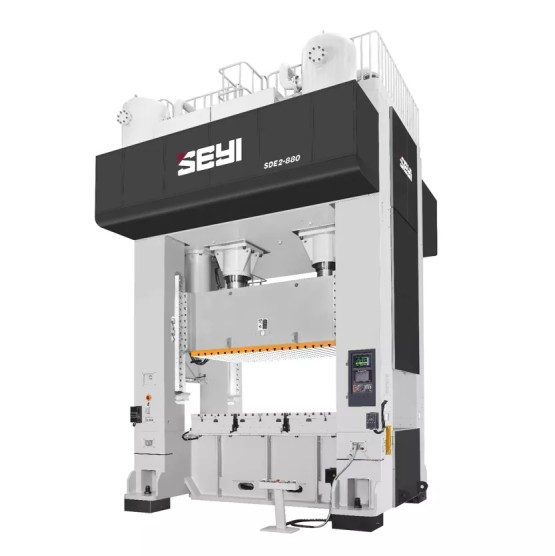

Straight Side Eccentric Gear Servo Press (SDE Series)
The best features for model SDE includes drawing, forming, blanking, punching and cutting of automotive parts, which comply and satisfy the trend and application of steel parts with light weight but high tensile strength in modern automotive industry. In addition, by combining progressive die with pendulum curve, the productivity can be doubled, which saves more than 50% of energy.
Description
- Powerful direct drive transmission with flexible and easy-to-use operating system
- Suitable for high tensile strength steel product
- Tie-rod structure for minimal deflection, accurate parts and machine durability
- Design makes it easy to integrate automation
- Saving energy and environmental friendly
- Eccentric gear drive, excellent for deep drawing and a variety of other stamping applications. High speed tandem line
Model : SDE2-400~1200 / SDE4-400~2400
|
Model |
SDE2-400 |
SDE2-600 |
SDE2-800 |
SDE2-1000 |
SDE2-1200 |
|||
|
Capacity |
kN |
4000 |
6000 |
8000 |
10000 |
12000 |
||
|
Stroke Length |
mm |
600 |
600 |
800 |
800 |
800 |
||
|
Strokes per Minute |
SPM |
~30 |
~30 |
~25 |
~25 |
~25 |
||
|
Tonnage Rating Point |
mm |
13 |
13 |
13 |
13 |
13 |
||
|
Die Height |
mm |
700 |
800 |
1000 |
1000 |
1100 |
||
|
Slide Adjustment |
mm |
300 |
400 |
500 |
500 |
500 |
||
|
Slide Area |
1 |
mm |
2500x1400 |
2500x1550 |
2800x1700 |
3100x1700 |
3400x1700 |
|
|
2 |
2800x1400 |
2800x1550 |
3100x1700 |
3400x1700 |
3700x1700 |
|||
|
3 |
3100x1400 |
3100x1550 |
3400x1700 |
3700x1700 |
4000x1700 |
|||
|
4 |
3400x1400 |
3400x1550 |
3700x1700 |
4000x1700 |
4300x1700 |
|||
|
Bolster
Area |
1 |
mm |
2500x1400 |
2500x1550 |
2800x1700 |
3100x1700 |
3400x1700 |
|
|
2 |
2800x1400 |
2800x1550 |
3100x1700 |
3400x1700 |
3700x1700 |
|||
|
3 |
3100x1400 |
3100x1550 |
3400x1700 |
3700x1700 |
4000x1700 |
|||
|
4 |
3400x1400 |
3400x1550 |
3700x1700 |
4000x1700 |
4300x1700 |
|||
|
Bolster Thickness |
mm |
180 |
250 |
250 |
250 |
300 |
||
|
Window Opening |
Bolster Only |
FB × UD |
mm |
1200x600 |
1350x700 |
1500x900 |
1500x900 |
1500x1000 |
|
Front to Back Rolling Bolster |
1200x600 |
1350x700 |
1500x900 |
1500x900 |
1500x1000 |
|||
|
Left to Right Rolling Bolster |
1700x800 |
1850x900 |
2000x1100 |
2000x1100 |
2000x1200 |
|||
|
Max. Upper Die Weight |
Ton |
5 |
6 |
7 |
7 |
8 |
||
|
Required Air Pressure |
MPa |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
||
|
Bolster Height |
Fixed Bolster |
mm |
850 |
850 |
850 |
850 |
850 |
|
|
Rolling Bolster |
660 |
660 |
660 |
740 |
740 |
|||
|
Die Cushion |
Type |
Cylinder |
Cylinder |
Cylinder |
Cylinder |
Cylinder |
||
|
Capacity |
kN |
600 |
1000 |
1200 |
1500 |
1500 |
||
|
Stroke Length |
mm |
200 |
200 |
220 |
220 |
220 |
||
|
Adjustment |
mm |
200 |
200 |
220 |
220 |
220 |
||
|
Cushion Pad Area |
1 |
mm |
2000x900 |
2000x950 |
2300x1300 |
2600x1300 |
2900x1300 |
|
|
2 |
2300x900 |
2300x950 |
2600x1300 |
2900x1300 |
3200x1300 |
|||
|
3 |
2600x900 |
2600x950 |
2900x1300 |
3200x1300 |
3500x1300 |
|||
|
4 |
2900x900 |
2900x950 |
3200x1300 |
3500x1300 |
3800x1300 |
|||
